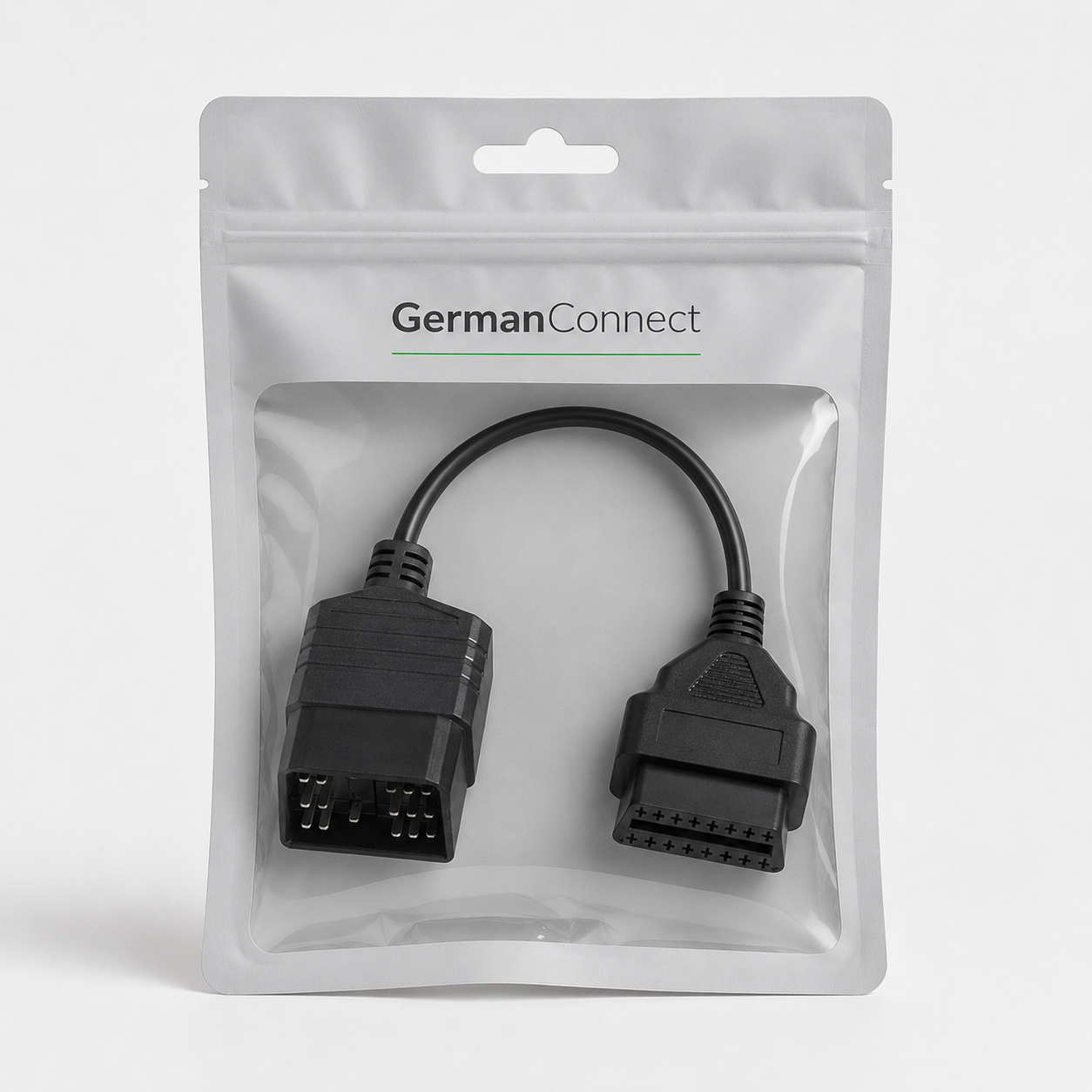

Passive adapter for connecting older Toyota and Lexus vehicles equipped with the proprietary 17-pin DLC1 diagnostic connector to a standard 16-pin OBD-II tool.
17-pin variant of the Toyota DLC1 connector, used on certain powertrains and specific markets in the 1990s. Allows the use of a modern OBD-II tool on these non-standard vehicles.
Passive adapter. Does not work alone, requires a compatible OBD-II interface sold separately.
Package Contents
- 1 x 17-pin DLC1 to 16-pin OBD-II Adapter
Warranty
Product guaranteed for 1 year, covers manufacturing and delivery defects.
Connection Type
| Vehicle Interface | Proprietary 17-pin Toyota DLC1 (OBD-I) |
| Tool Interface | Standard 16-pin OBD-II |
| Type | Passive Adapter |
Supported Protocols
| K-Line | ISO 9141-2 |
| Proprietary Protocol | Toyota DLC1 |
Required Adapters
Requires a compatible OBD-II interface on the PC side, sold separately.
Compatible Vehicles
- Toyota Land Cruiser (80 series), Toyota Hilux Surf, Toyota 4Runner
- Some Toyota Camry and Corolla models from specific markets (Japan, Australia)
- Lexus LX450, early GX470 versions
- Toyota / Lexus vehicles with 17-pin DLC1 connector, approximately 1990 to 1998
Check compatibility with your vehicle using the configurator.
Performable Operations
- Read and clear Diagnostic Trouble Codes (DTCs)
- Read real-time data
- Reset ECUs
Compatible Software
- Toyota Techstream (via J2534 interface)
- Carman Scan (Toyota compatible)
Software is not included at the time of purchase but can be downloaded for free via the links in the software section.
